50,000 Volts Versus Namib Fog, Plasma Channel’s High-Voltage Water Hunt

Plasma Channel packed a year of garage experiments into checked luggage and flew 14,000 kilometers to Namibia to see if 50,000 volts could pull drinkable water out of desert fog. The unit uses electrostatic precipitation: a high-voltage wire ionizes tiny water droplets so they race toward grounded mesh or rods, condense, and drip into a collector. Early two-stake versions ran at lower voltage and 39 watts. Later builds grew to a three-stake, double-stacked layout four times as wide, added solar charging, 3D-printed resin joints for travel, and a timer that cycled two minutes on and three minutes off between 6 and 8 a.m.

Garage tests in heavy artificial fog resembled something out of a science fiction film. The fog cleared in an instant after being turned on, and a tap was turned on to release some genuine water to demonstrate that the system works. One scaled-up version of the setup used only 120 watts and produced 42 milliliters of water per minute. That comes up to a reasonable 21 milliliters per watt hour, or 48 watt hours per liter, but let’s be clear: this is a best-case lab result, not a guarantee for real-world use.

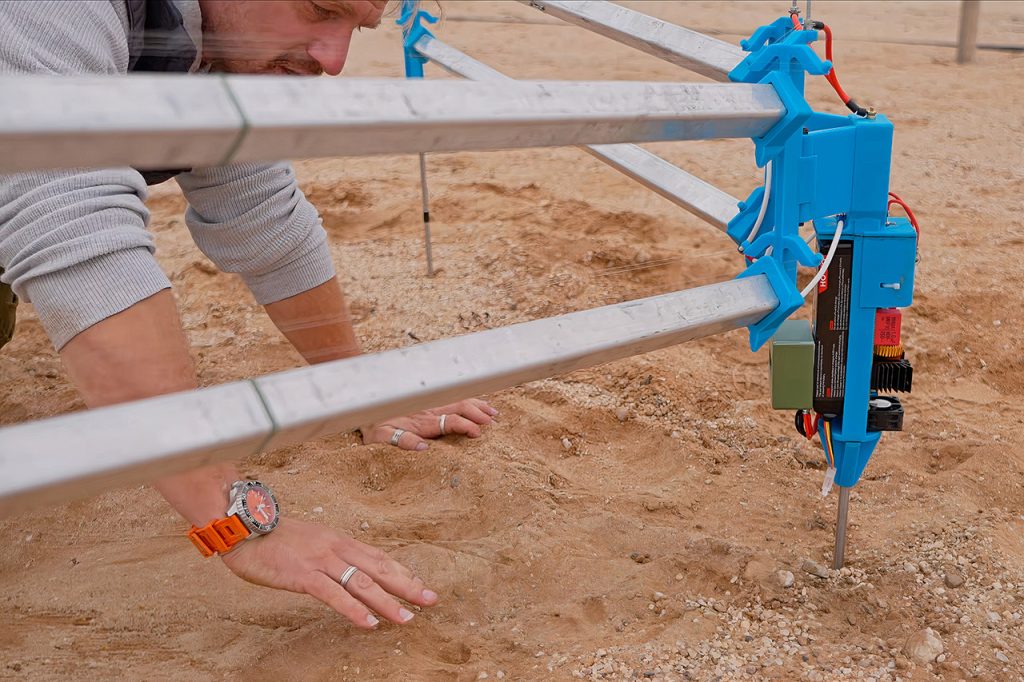

However, the Namib nights were always going to be the real test. Along the shore, fog can continue for hours and is already keeping bugs, plants, and isolated villages alive in one of the world’s driest locations. The University of Namibia researchers in Swakopmund made an excellent offer, agreeing to let him utilize a seaside campus site and share some of their local knowledge so we could test how well this thing would perform in the real world. He was even able to put the prototype together on site, install it outside, and then lay it down for a few nites to observe how it would perform while the solar charged the batteries.

Unfortunately, the fog was a bit of a nuisance on the most of the test nights. He’d get forecasts for 8 hours of dense fog, but as soon as the sun set, everything cleared up. When it did decide to make an appearance, the droplets would form on the rods, but they would never be enough to make it worthwhile. The salt spray from the Atlantic, which still makes its way inland for a kilometer, was seeping into the high voltage electronics, and moisture within the transformer caused all sorts of arcing. Before long, the technology began to fail, and stakes snapped under the weight of all the changing pieces in the wind, rendering the mesh even less efficient.

Passive fog nets have been used in the same desert for years, collecting water with no electricity. They don’t collect a large proportion of the droplets, but for the most part, they continue to perform year after year with little maintenance, and they can withstand salt air without issue. Electrostatic capture, on the other hand, has the ability to collect a considerably larger part of the moisture, but the energy required to do so is simply too high, and there’s also the matter of corrosion and the whole deadly voltage thing, which still makes me anxious every time I look at it. So, in actuality, even a full laptop battery may be insufficient to produce a single liter.

He needs to perform a lot more work on the hardware before considering taking it on its next excursion, which could be to the Atacama. The obvious next steps are to alter it to protect the electronics from salt, increase wind resistance, and make it easier to assemble. The physics is sound when the fog is dense and we can keep the electronics dry, but field conditions in Namibia just refused to provide us with what we required at the same time, leaving us with a slew of damaged parts.
